In the field of precision manufacturing, tungsten carbide (also known as cemented carbide) is hailed as the "industrial tooth" for its extremely high hardness, wear resistance, and compressive strength. It serves as an indispensable core tool in key processes such as stamping, injection molding, and drawing. However, to produce tungsten carbide molds with excellent performance and stable quality, in addition to advanced material formulations and precision machining equipment, one crucial factor is often overlooked—the production environment. Constant temperature, humidity, and dust-free workshops are increasingly becoming the "strategic infrastructure" and a core competitive edge for high-end tungsten carbide mold manufacturers.

I. Why does tungsten carbide mold manufacturing require a constant temperature, humidity, and dust-free environment?

1. Temperature – The decisive factor for accuracy control

Tungsten carbide materials are extremely sensitive to temperature changes. Temperature fluctuations cause thermal expansion and contraction, and in precision machining, even such minor dimensional changes are significantly magnified. Calculations show that for a 300 mm long steel workpiece, the deformation per 100 mm due to a temperature difference is approximately 1.2 μm/°C; a 3 °C difference results in about 10.8 μm of change. For precision molds with dimensional tolerances within 0.01 mm, such variation is sufficient to make the machined parts exceed the accuracy limits, failing to meet design requirements.

If the workshop temperature is unstable, the thermal expansion and contraction of tungsten carbide workpieces during machining, combined with the frictional heat generated by the process, will have a double stacking effect that severely compromises machining accuracy.

2. Humidity – Key to rust prevention, static control, and process stability

The impact of humidity on tungsten carbide mold manufacturing is equally significant. Excessively high humidity causes condensation and rust on metal equipment surfaces, affecting equipment accuracy and service life, and may even lead to electrical short circuits and other safety hazards. On the other hand, low humidity readily generates static electricity, which attracts airborne dust particles onto workpiece surfaces or machining equipment, severely affecting machining accuracy and surface quality, and may also interfere with precision devices such as electronic control systems.

Industry experience indicates that relative humidity should generally be controlled between 40 % and 60 %. A stable humidity environment also ensures more consistent powder flowability, green compact density, and sintering shrinkage during tungsten carbide production, greatly reducing product quality variation caused by environmental fluctuations.

3. Cleanliness – The lifeline for eliminating internal and external defects

Tungsten carbide mold production starts with mixing micron or even nano-scale raw materials such as tungsten carbide powder and cobalt powder. These powder particles are extremely fine. Once dust, hair, or other organic contaminants are introduced during production, they become internal "defect sources." During subsequent pressing and high-temperature sintering, these impurities gasify, decompose, or remain as residues, forming voids, cracks, or inclusions inside the material. These microdefects act as weak points in an otherwise solid structure; when the mold withstands high-intensity, high frequency impact and friction, they can easily cause early cracking, chipping, or wear, drastically shortening the mold's service life.

Furthermore, during subsequent finishing operations such as grinding, polishing, precision grinding (PG), and wire electrical discharge machining (WEDM), hard particles floating in the air that settle on workpieces or equipment can easily cause irreparable scratches on precision mold surfaces. Therefore, tungsten carbide mold manufacturing demands extremely high air cleanliness.

4. Protecting precision equipment and reducing total production costs

Modern tungsten carbide mold production lines are equipped with expensive, high-precision presses, sintering furnaces, machining centers, and other equipment. Airborne dust invades the precision moving parts, hydraulic systems, and control systems of these machines, leading to accelerated wear, higher failure rates, and loss of accuracy. A constant temperature, humidity, and dust-free environment not only ensures product quality but also significantly reduces equipment maintenance frequency and costs, extends equipment service life, ensures continuous and stable operation of the production line, and thus improves overall production efficiency.

II. How to build a constant temperature, humidity, and dust-free workshop?

1. Temperature control – Precision HVAC system + intelligent monitoring

To achieve precise temperature regulation, tungsten carbide mold workshops are typically equipped with professional constant temperature and humidity HVAC systems. These systems provide stable cooling and heating functions and can automatically adjust to changes in the internal and external workshop environment.

2. Humidity control – Dehumidification/humidification equipment + dew-point interlock

Workshops must be equipped with professional dehumidifiers and humidifiers, using humidity sensors to monitor real-time humidity levels. When humidity is too high, dehumidifiers activate automatically; when too low, humidifiers start working, keeping relative humidity stable within the optimal range of 40 % to 60 %.

3. Intelligent monitoring and management

Modern constant temperature, humidity, and dust-free workshops are typically equipped with high-precision sensors and PLC/DDC control systems to achieve real-time monitoring, automatic adjustment, alarm, and data logging of temperature, humidity, differential pressure, and cleanliness. Establishing a comprehensive operation and maintenance system—regularly replacing filters, cleaning air handling units, checking fan operating status, calibrating sensors, and maintaining control systems—is key to maintaining long-term stable operation of the workshop.

In terms of personnel management, strict procedures for gowning, air shower, and hand cleaning must be enforced before entering the workshop. Paper, food, or other easily shed items should not be brought into the work area. Regular cleanroom awareness training should be provided to ensure that every employee understands and complies with cleanliness requirements.

Conclusion

A constant temperature, humidity, and dustfree environment is no longer exclusive to the semiconductor or biopharmaceutical industries. It is equally an indispensable core element in the field of high-end tungsten carbide mold manufacturing. In today's manufacturing landscape, where the pursuit of higher precision, better quality, and lower cost never stops, excellent workshop environmental management capability is becoming a key advantage for mold manufacturers to stand out in fierce competition. Temperature, humidity, and cleanliness—these three parameters are not merely equipment settings; they are concrete expressions of quality commitment, the reputation and trust written by a company's solid strength.

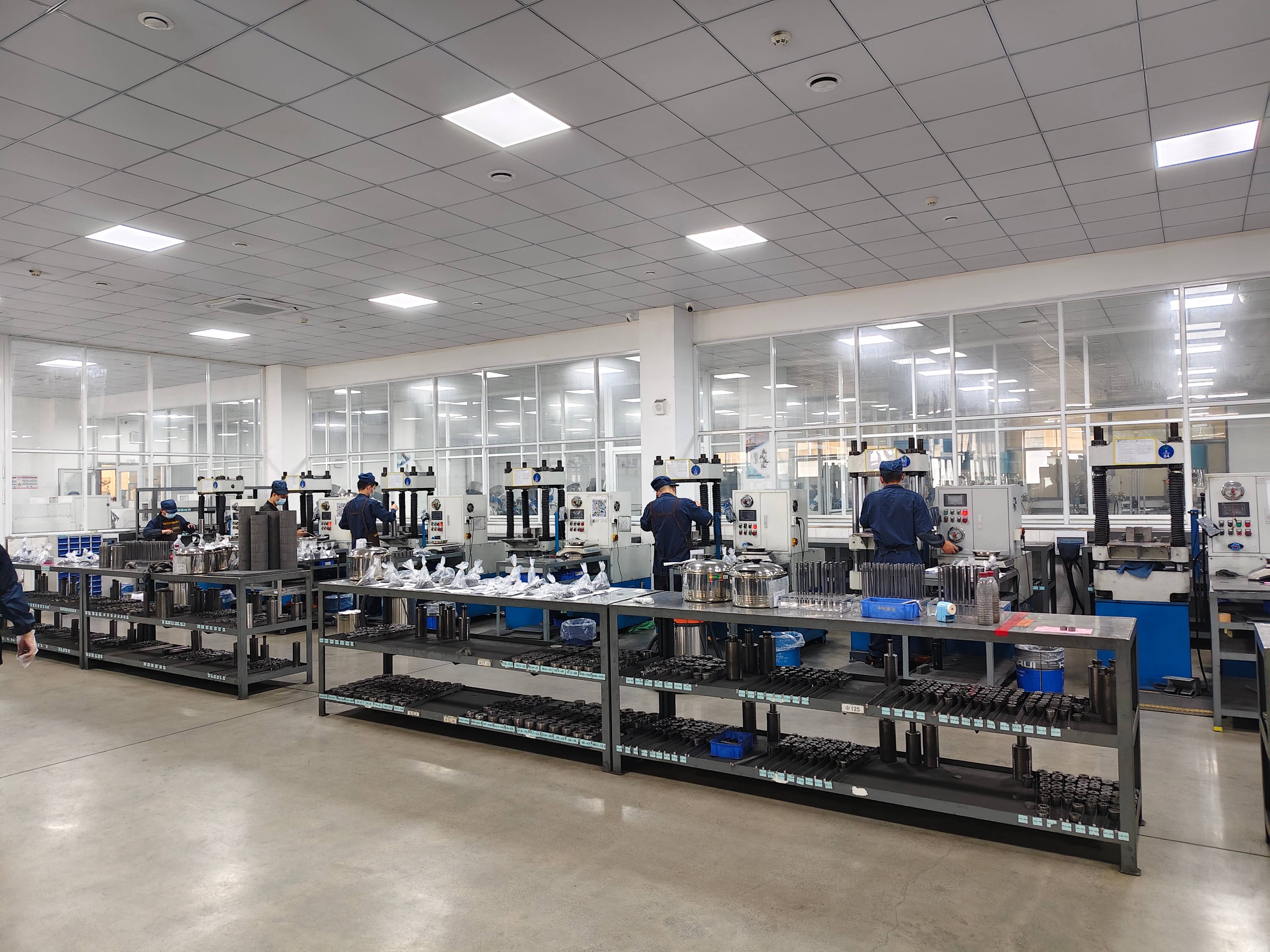

In this regard, ZCCF Tungsten Carbide has always been at the forefront. Its production workshop strictly adheres to all the technical requirements for a constant temperature, humidity, and dust-free environment. With stable and reliable tungsten carbide mold products and a continuous improvement mindset, ZCCF Tungsten Carbide sincerely welcomes customers to visit, inquire, and place orders. Choosing ZCCF Tungsten Carbide means choosing professionalism and guaranteed quality.
